Specifications:

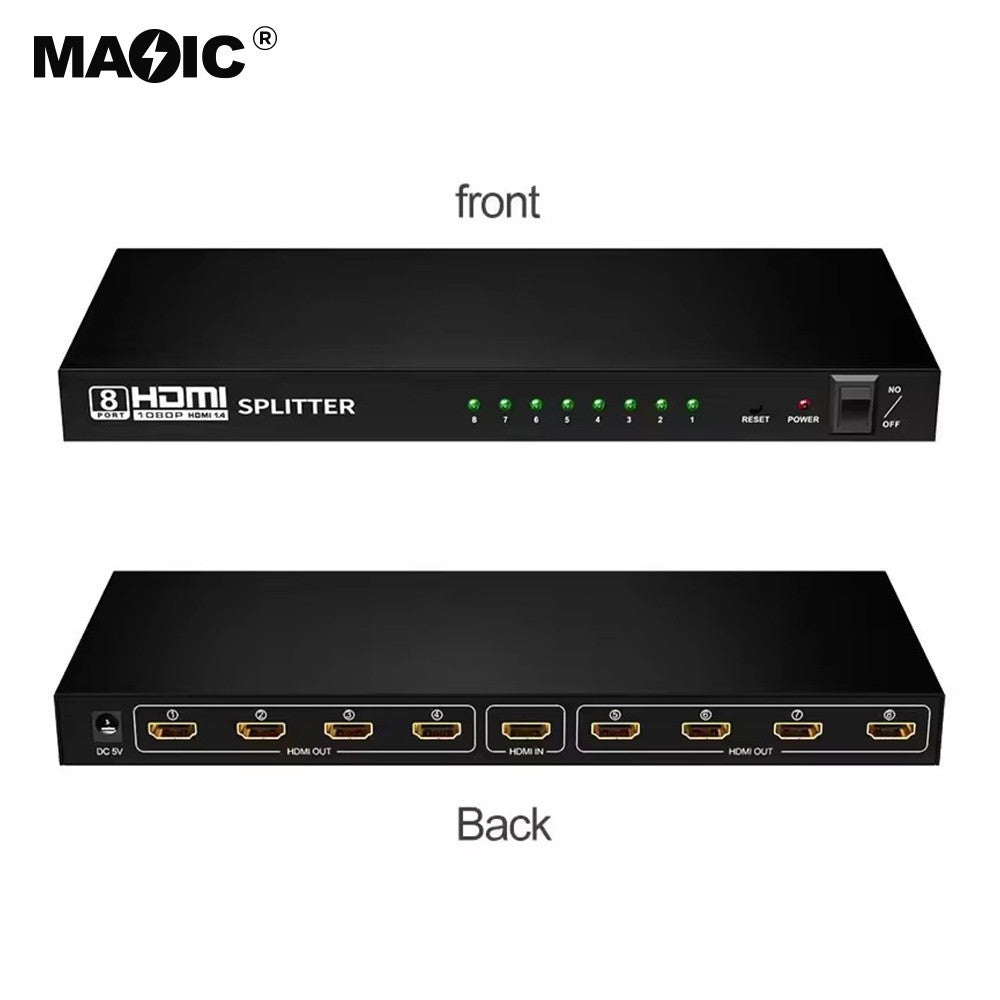

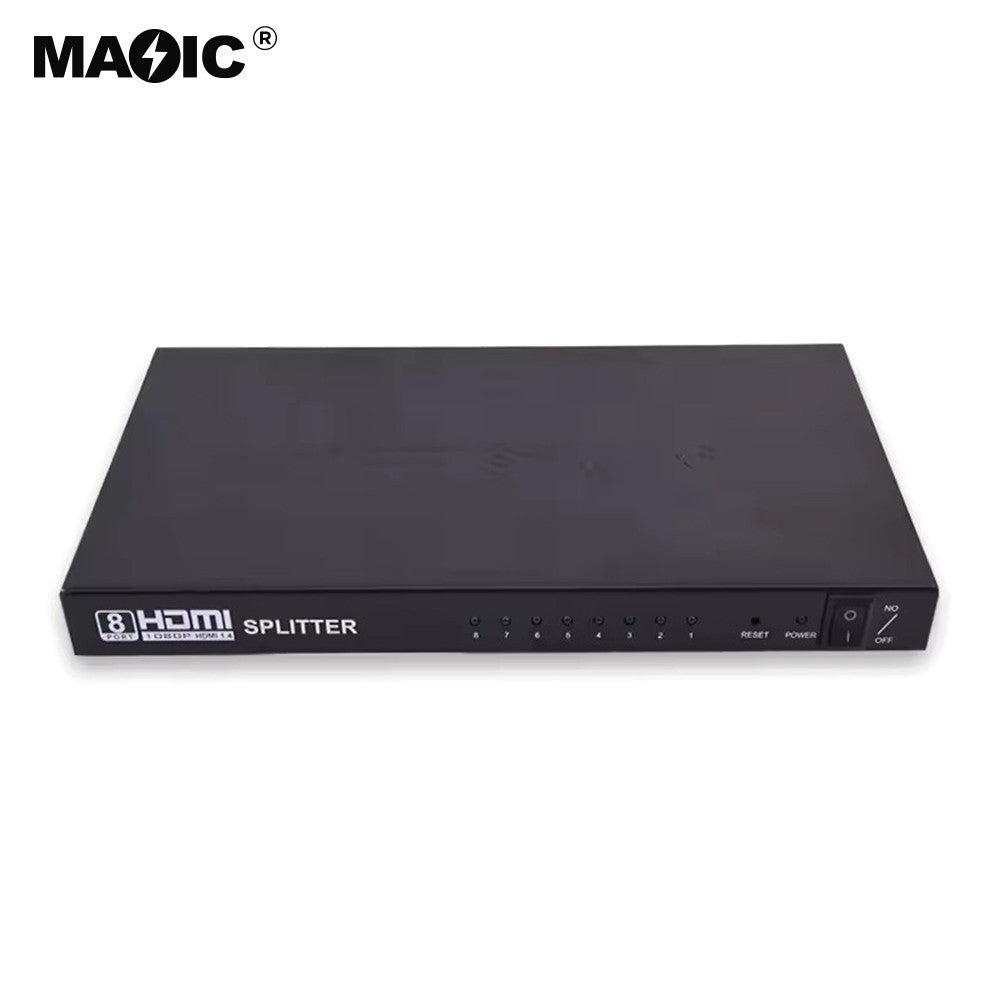

• HDMI splitter, a high-definition audio and video splitter that allows one HDMI port to distribute eight HDMI ports. The HDMI signals of set-top boxes, DVD players, D-VHS players and other HDTV devices can be distributed into eight consistent and synchronized HDMI signal outputs. The single-channel signal output by the user can be connected to audio equipment such as high-definition projectors, DLP, LCD high-definition televisions, etc. at the same time. All support HDCP.
  When the user uses it, first connect the HDMI signal to the INPUT of the HDMI splitter through a standard HDMI cable. There are two or four or more HDMI output ports on the HDMI splitter, which can be connected to the local display. It can be connected to the remote display device. By adjusting the brightness and contrast on the HDMI splitter, the image clarity of the remote display device can be adjusted to the same effect as the local.

  Connection and operation
  1. Connect the input port of the switcher with a HDMI signal source through the HDMI socket
  2. Connect the output port of the switcher with a HDMI display device through a HDMI cable
  3. Connect the 5V power supply to the device



  Performance characteristics:

  1. With signal buffering and amplification capabilities
  2. Long-distance transmission of more than 15 meters (extended) can be achieved through serial connection
  3. Through the stacking method, the number of HDMI output ports can be significantly increased
  4. Support 480p, 576p, 720p, 1080i, support maximum resolution up to 1080P
  5. Support 3D video format, high-quality, clear, HDTV resolution up to 1080p
  6. Easily connect to multi-channel audio receiving equipment
  7. Support HDMI1.4 version
  8. Fully compatible with HDCP
  9. Quick installation and simple operation




  HDMI distributors can be widely used in all fields that require HDMI signal distribution and combination: multimedia teaching, video and telephone conferences, large-screen displays, exhibitions, finance, supermarkets, conference systems and other fields. .It is sent to multiple sets of the same HDMI signal synchronously through a set of HDMI signals, and has the functions of vibration reduction and amplification. The HDMI splitter series can reach a transmission distance of up to 10 meters. More powerful output group function can be achieved when cascading. The HDMI splitter series provide an ideal solution for the high-definition television industry, field operation engineering, satellite set-top boxes, DVD, projection, data center monitoring, education industry, corporate training, etc.
